LAUNDRO

OVERVIEW

An integrated laundry solution for young singles, enhancing user experience and solving problems.

SOFTWARE

Solidworks, Keyshot

Omnigraffle, Sketchbook

Photoshop,InDesign

DATE

Jan, 2014 - April, 2014

It starts from unsatisfied

laundry experience.

WHAT WE FOUND

TEAM WORK

Assigned target group - Singles

We conducted survey to narrow down target group aged from 24-29.

18%

18-23

47%

24-29

20%

30-35

15%

36-41

How do people feel about doing laundry?

Easily collecting and dropping clothes

Usage following by indication on the cap

Leaving longer to cool down

Transferring heavy load basket is painful

Clothes dropping when transferring between machines

Forgetting time to dry clothes

Confused about laundry knowledge and settings

What do they care about?

Machine size

Size is the most universal factor when considering to purchase a new machine.

Time

It is common to leave clothes in the washer and forget drying.

Settings

Majority of users know a few machine settings and laundry knowledge.

Load

Current machines have either half capacity less or over than user's need.

Energy efficiency

Users care more about electricity bill than the energy efficiency.

Andy L. | 25

Officer

In house washer and dryer

Alyssa C. | 24

Graduate student

Laundromat

Elise W. | 27

Auditor

Apartment laundry room

Frustrating settings

Clothes dropping

Forgetting to dry clothes

Bending body

Limited space

PAIN POINT

MARKET RESEARCH

Price range

All-in-one

$650-1900

Washer

$250-2050

Dryer

$200-1750

Facts influencing purchase

Price

Durability

30%

20%

20%

15%

15%

Size/design

Energy saving

Functionality

What's the market trend?

Machine type

Combo machine

Mechanism

No agitator

Interface

User-friendly UI

Integration

Connectivity

DESIGN STRATEGY

INDIVIDUAL WORK

DESIGN ELEMENT = PAIN POINT SOLUTION + MARKET TREND

SIZE/SPACE

Built-in/embedded



Portable



Combo machine



No agitator

TIMING

Auto transferring



Programmable



Notification



App integration

UI/UX

Concise interface



Setting presets



User-friendly

KNOWLEDGE

Laundry database



Cloud support



Fabric care

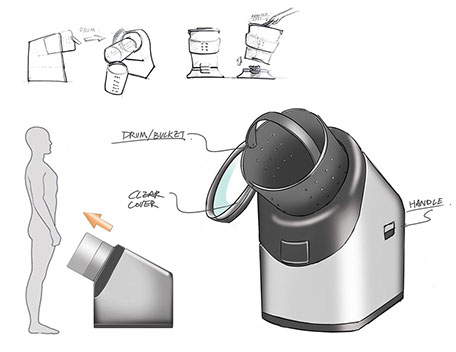

IDEATION BOARD

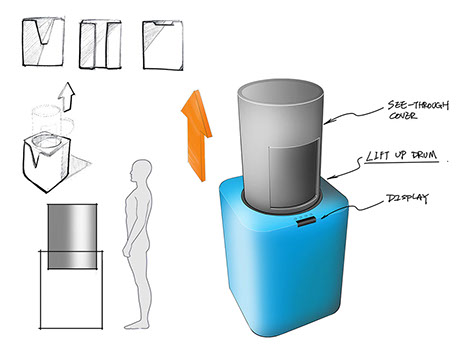

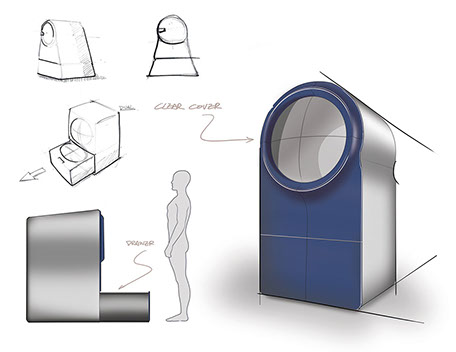

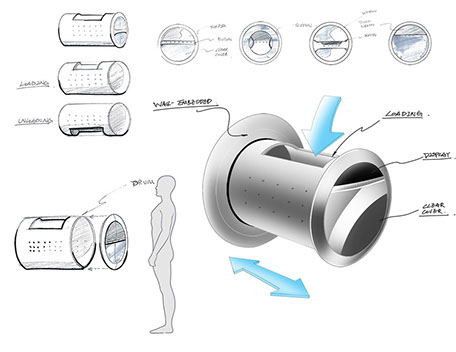

CONCEPTS

EVALUATION

Size

Stability

Portability

Usability

N/A

(Wall-embedded)

N/A

SOLUTION

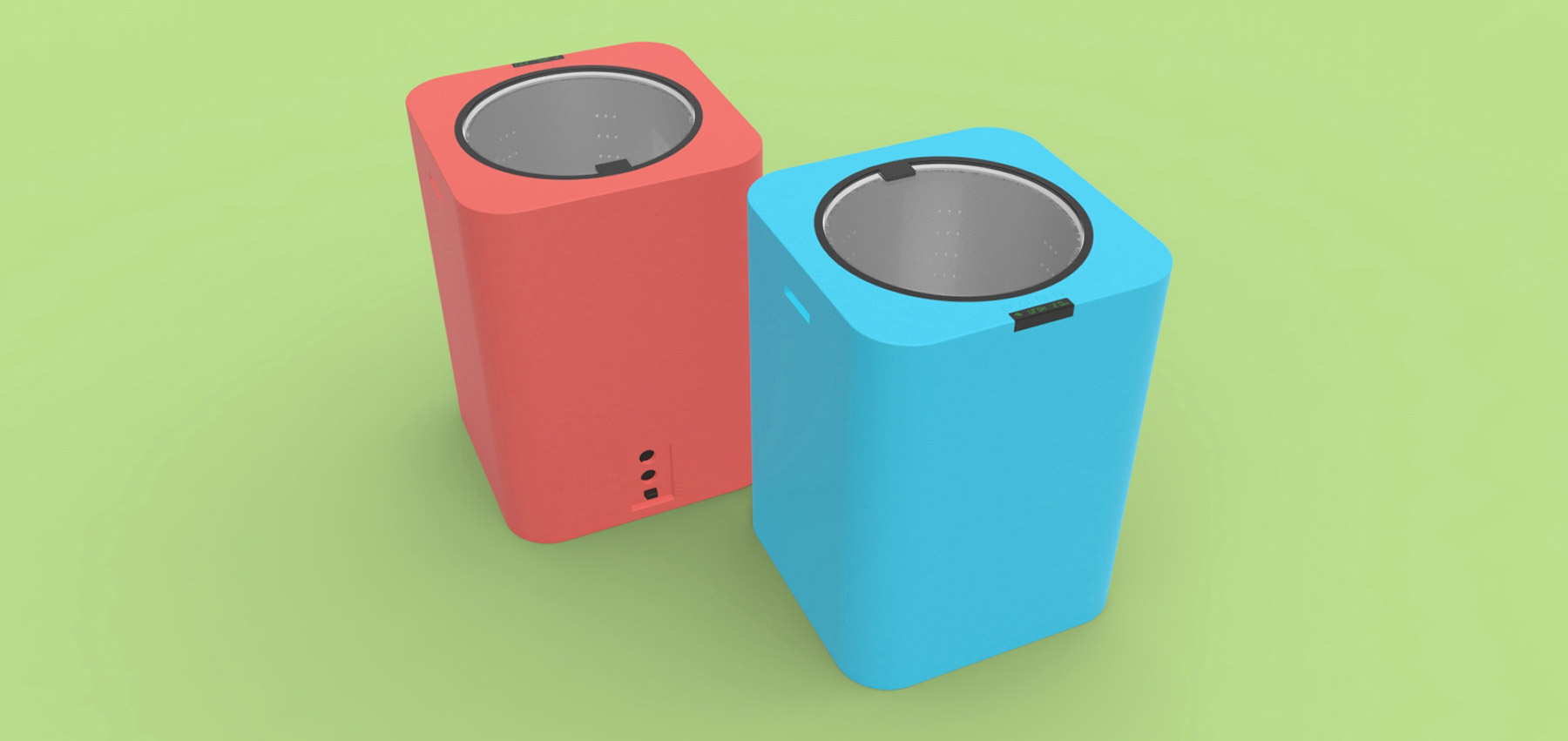

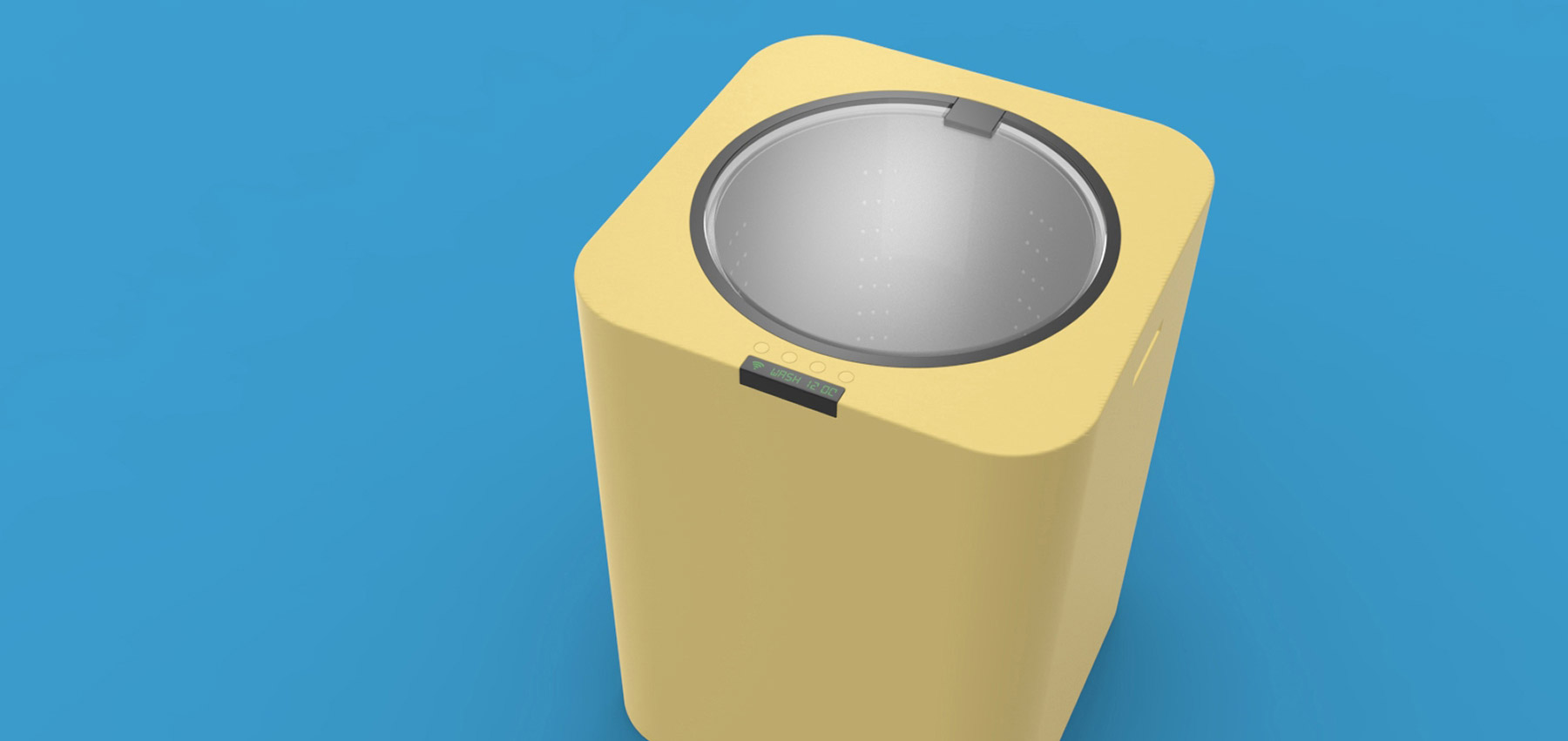

LAUNDRO

FEATURES

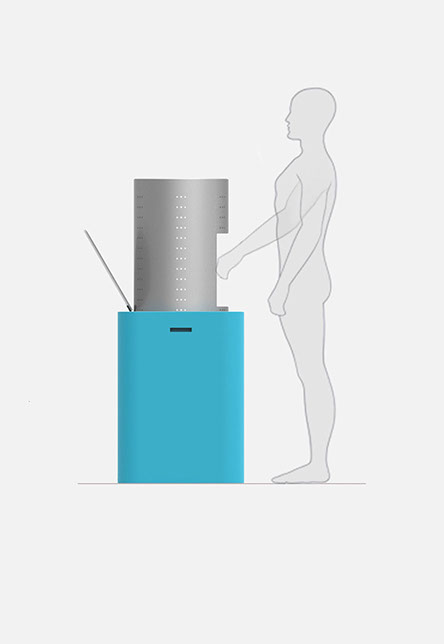

All-in-one machine with lifting drum,

avoiding body bending when getting clothes.

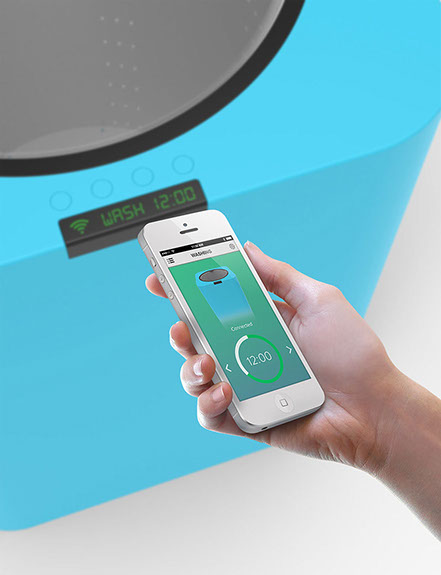

Mobile device integrated,

enabling remote control and real time notification.

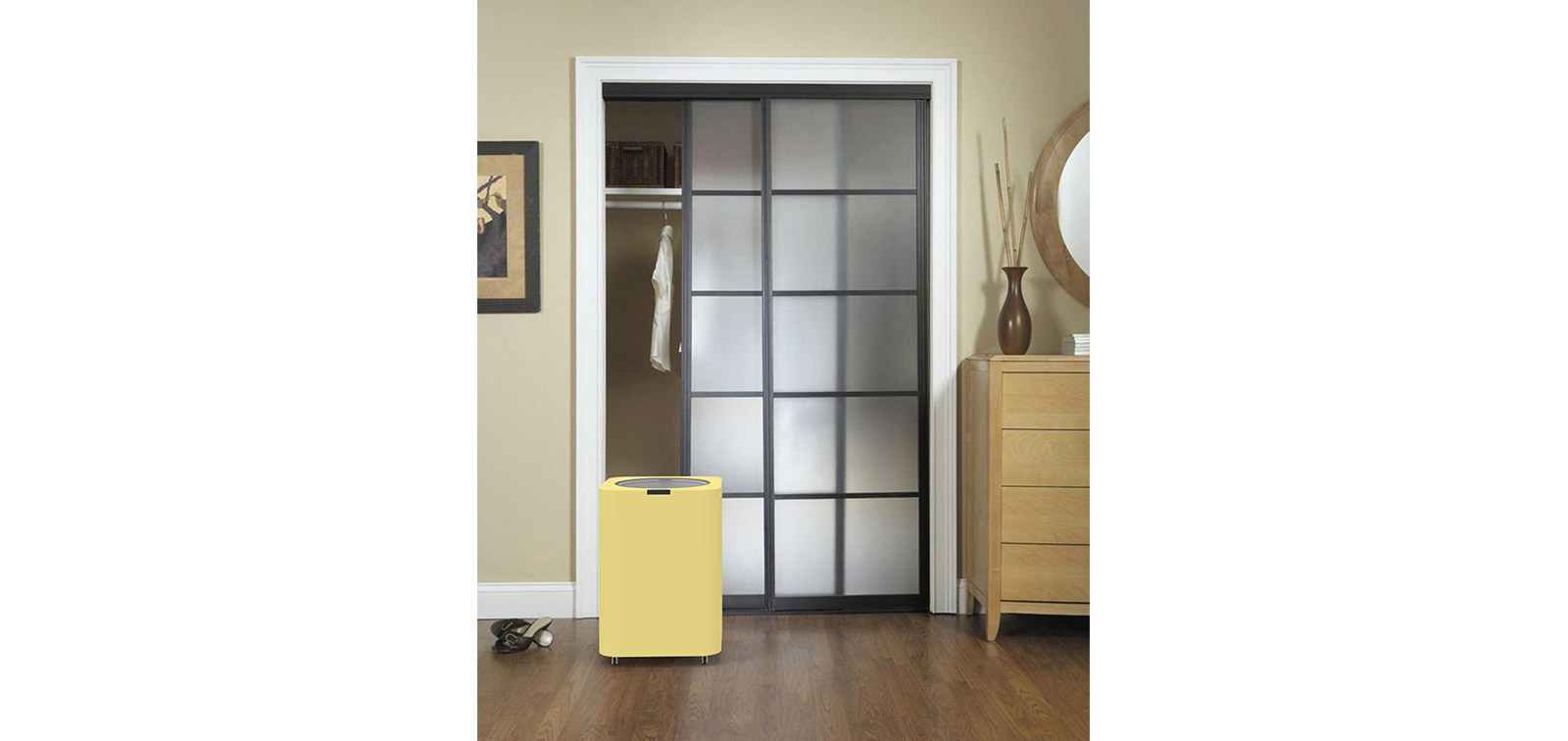

Portable size with handles and folding wheels.

Water outlets easy installation.

Various color choices.

DEMONSTRATION

LOADING

UNLOADING

CONTROL &

NOTIFICATION

LAUNDRO PRO

DESIGN FOR FUTURE

FEATURES

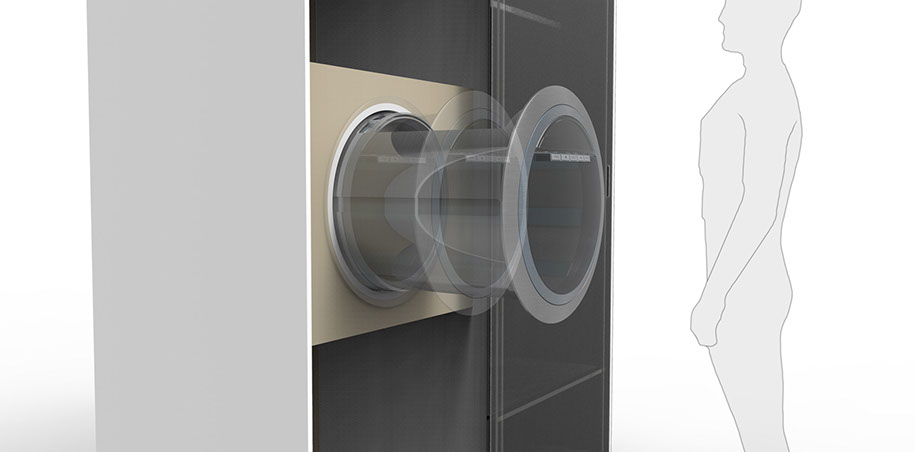

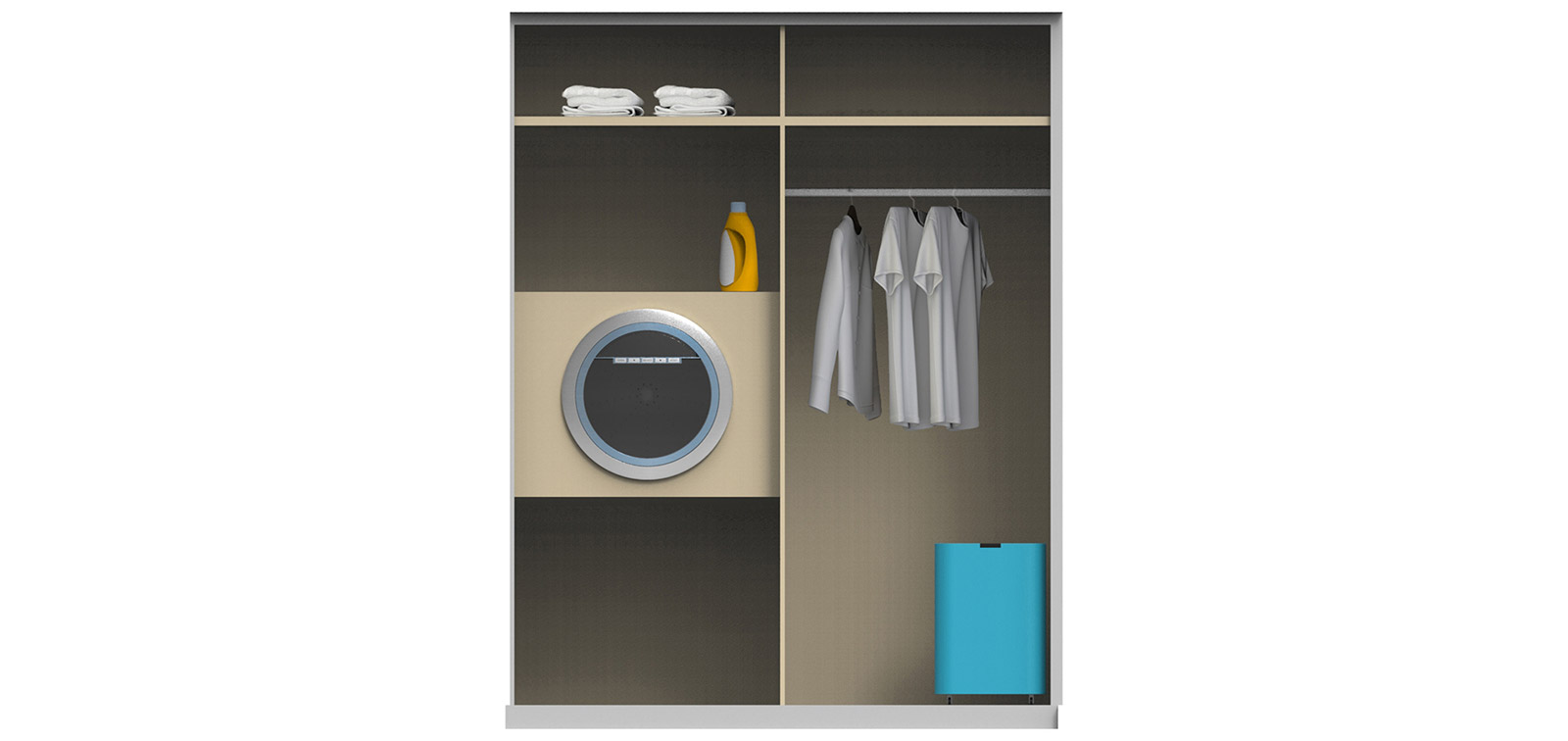

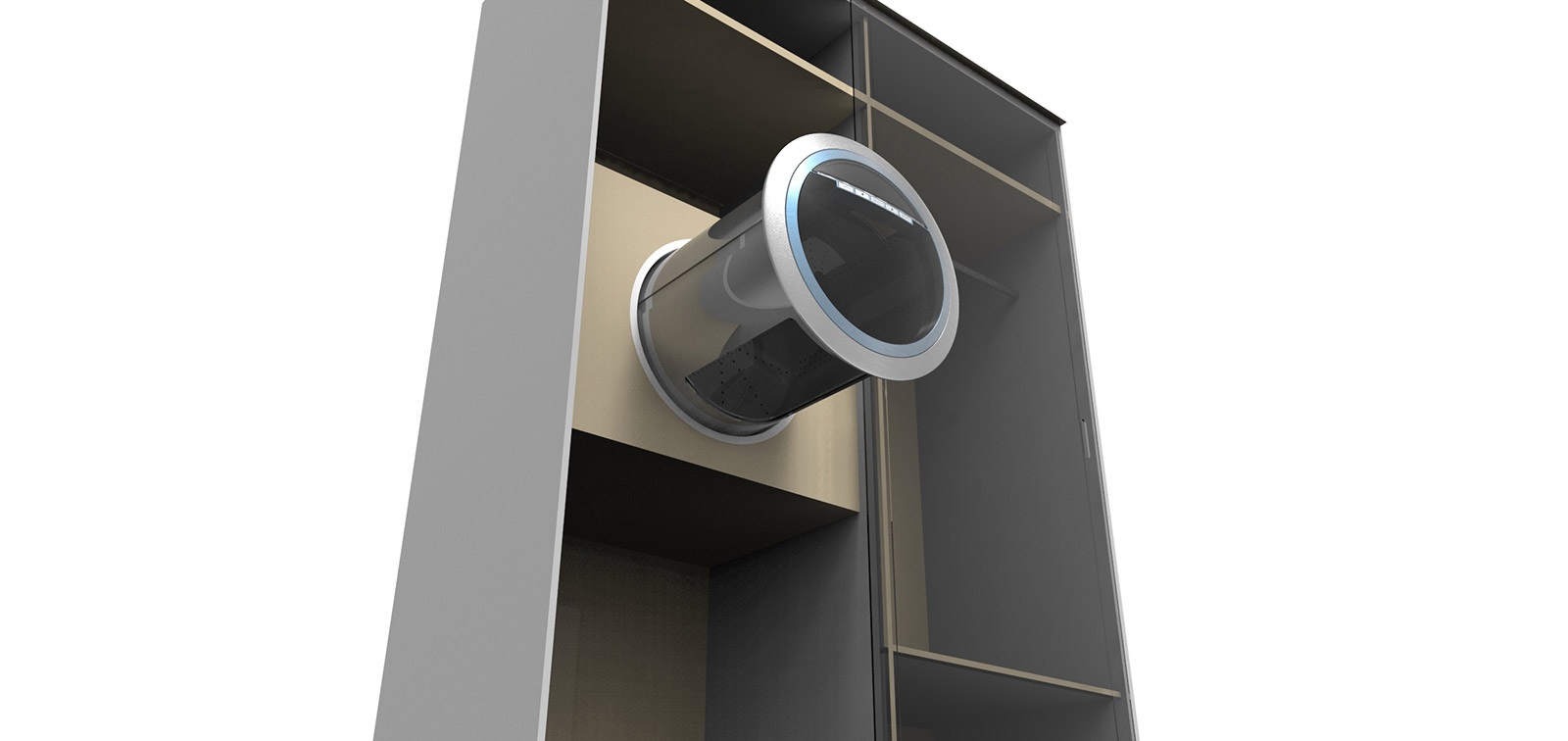

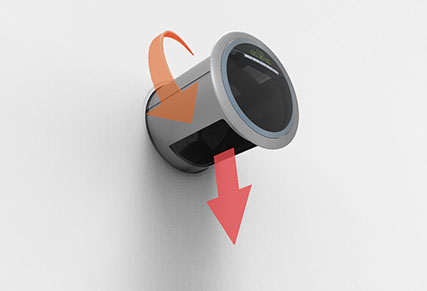

All-in-one machine with furniture embedded design and retractable drum, saving room space.

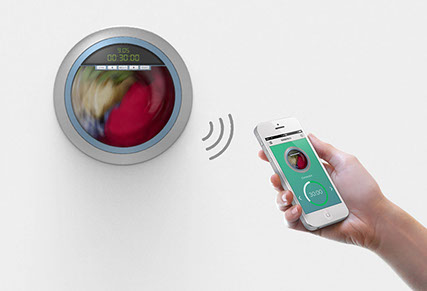

Mobile device integrated,

enabling remote control and real time notification.

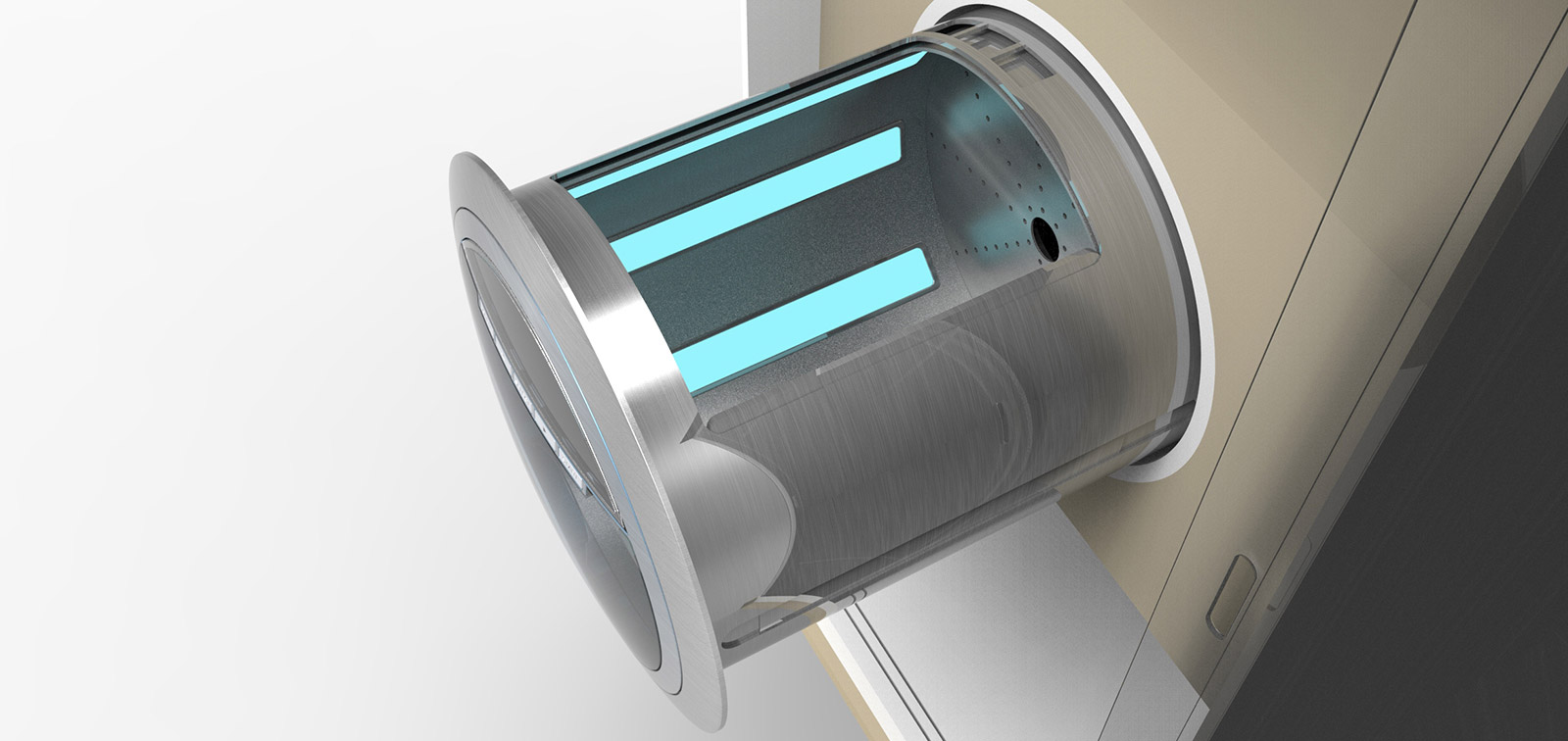

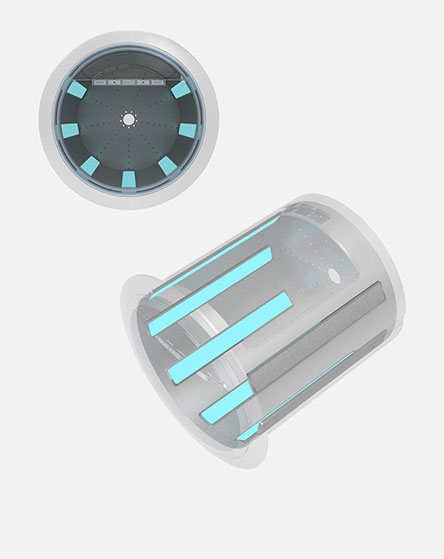

Ultraviolet germicidal irradiation:

no water and chemical detergent needed.

DEMONSTRATION

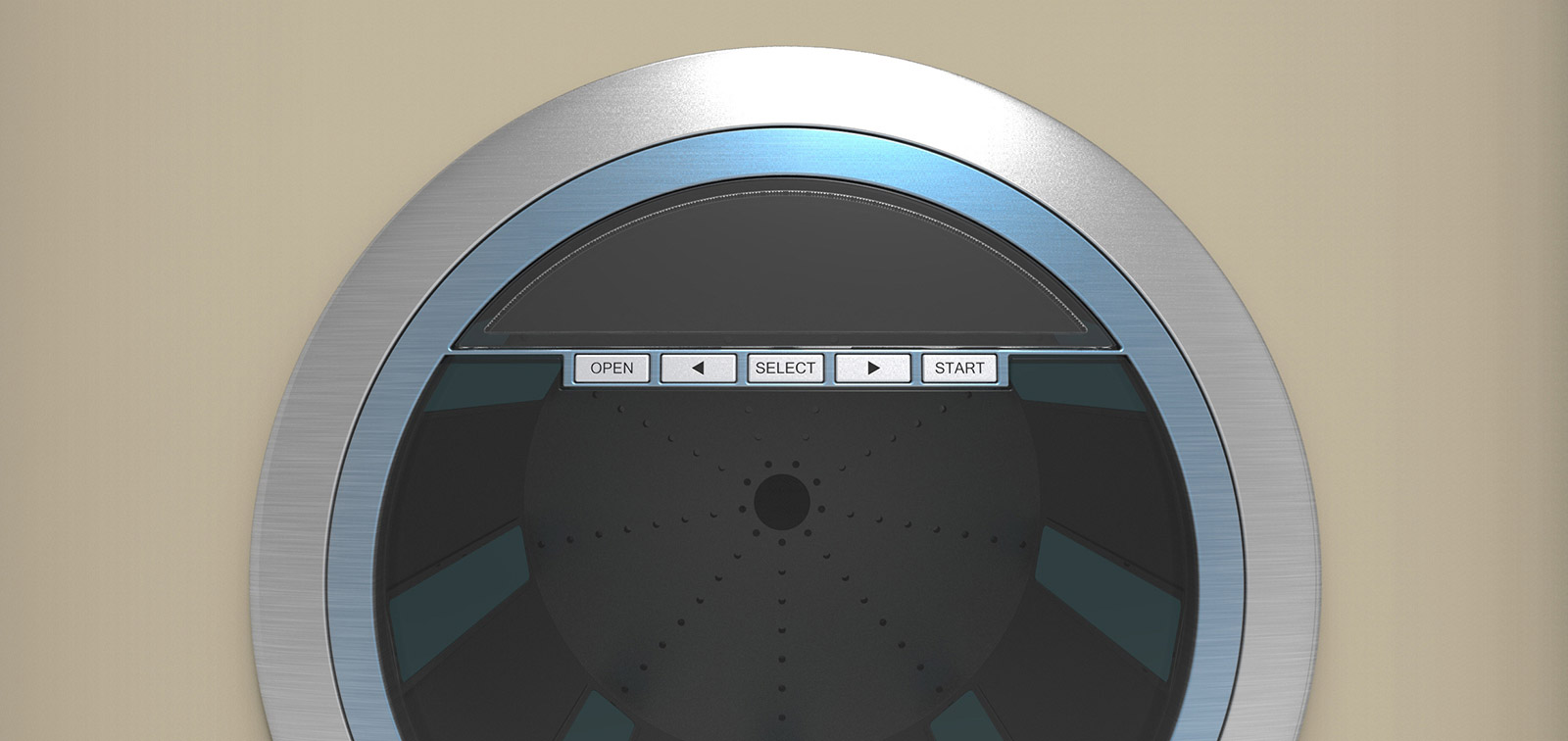

OPENING

CONTROL & NOTIFICATION

LOADING

UNLOADING

DIMENSION

5'8''

LAUNDRO

Capacity: 3.0 Cu. Ft.

Weight: 120 lbs

LAUNDRO PRO

Capacity: 4.0 Cu. Ft.

Weight: 150 lbs

APPLICATION

USER INTERFACE

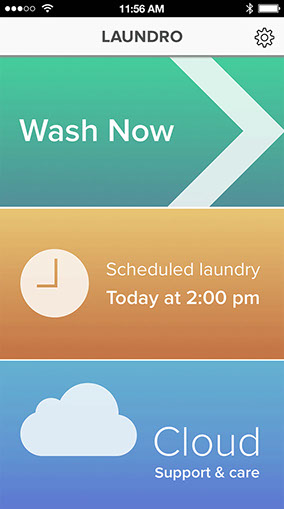

HOME

Three features: machine remote control, scheduled laundry and cloud support.

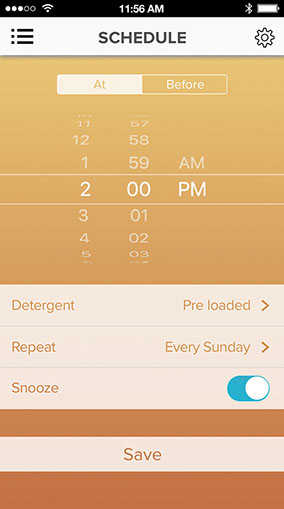

SCHEDULING LAUNDRY

Laundry can be scheduled either on or before a certain time.

REMOTE CONTROL

Remotely control machine settings, laundry process and receiving status notification.

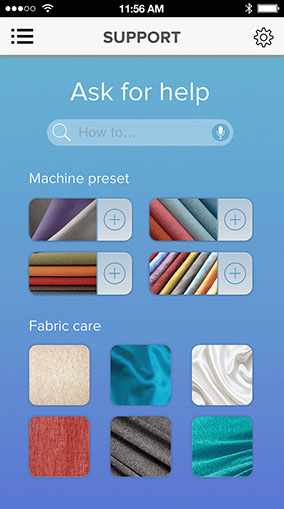

LAUNDRY CLOUD SUPPORT

Access to specific fabric care, machine presets download or laundry tutorials.

RENDERING
